leagend
BA100
12V Lead-acid & Lithium Battery Tester

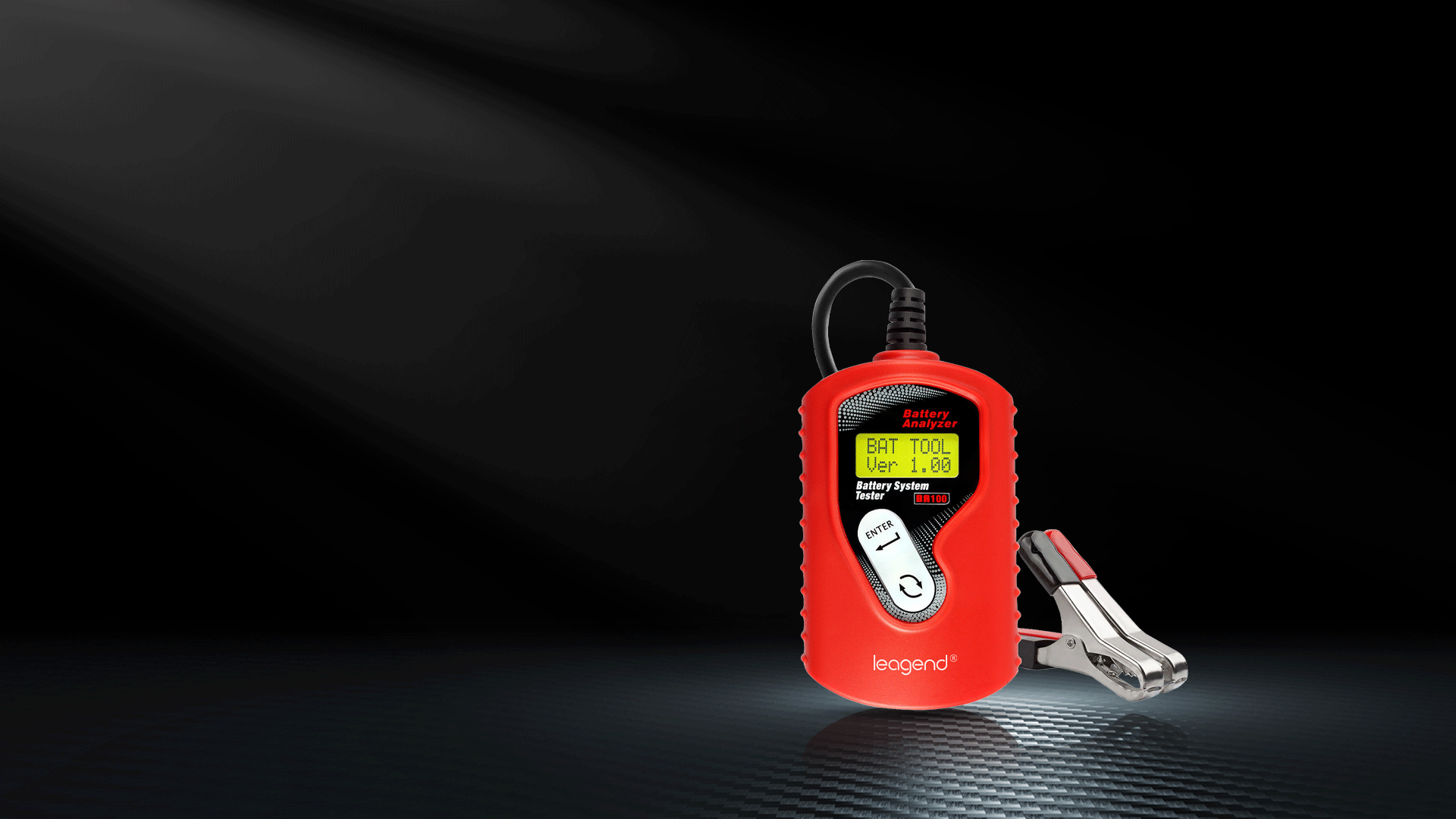

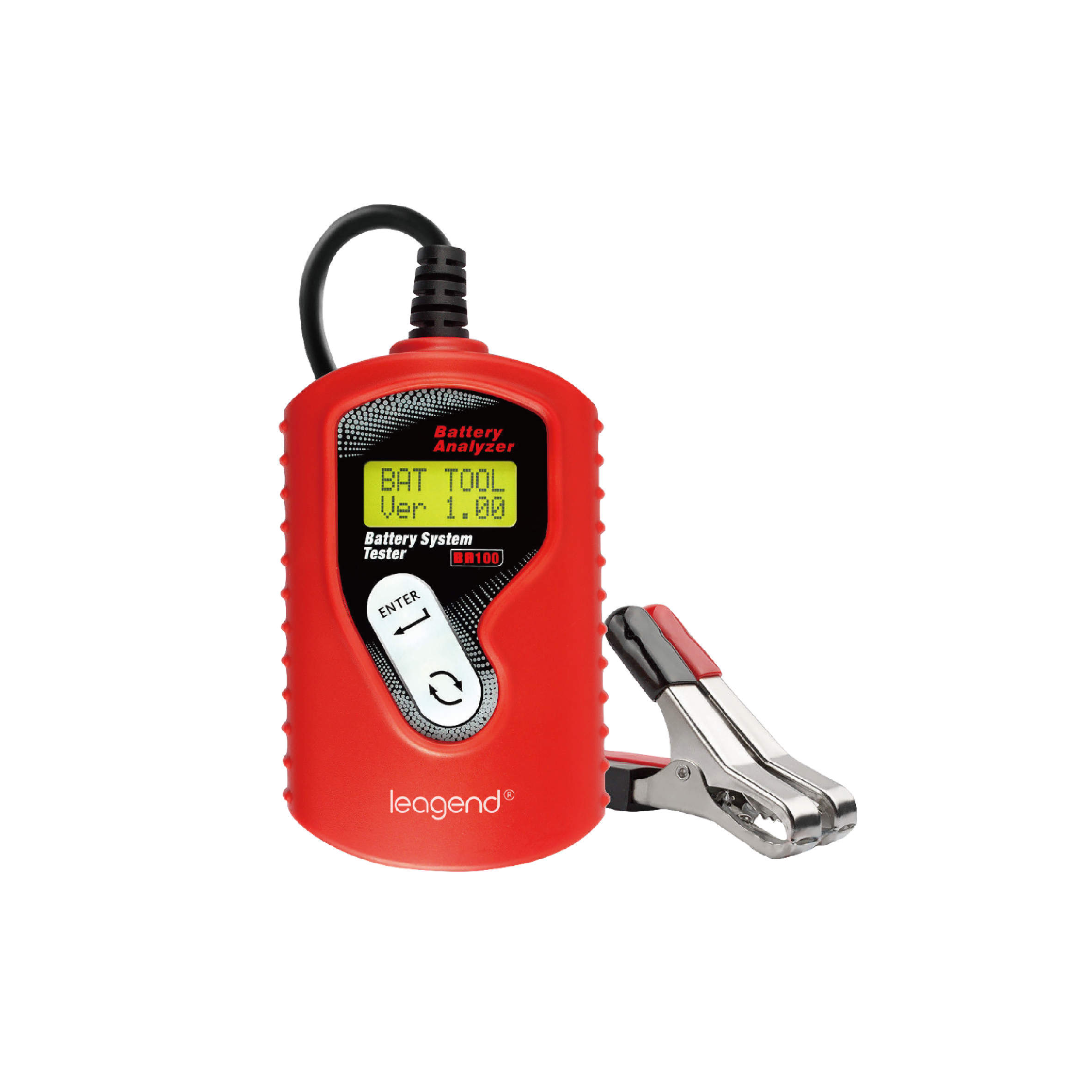

The leagend BA100 is a 12V tester that covers lead-acid and lithium batteries, including starting, deep cycle and marine types. It measures CCA, internal resistance, voltage, SOC/SOH, tests the cranking and charging systems, and supports testing both in and out of the vehicle. Reverse connection will not damage the tester or the vehicle's electronics.
ALL-IN-ONE
BATTERY TESTER
● Test battery CCA, internal resistance, voltage, state of charge and state of health;
● Support 12V starting, deep cycle and marine batteries;
● Test 12V vehicle cranking system and charging system;
BATTERY IN / OUT OF VEHICLE TEST
Support battery test in vehicle and out of vehicle;
REVIEW DATA
Review battery, cranking and charging test results
REVERSE CONNECTION PROTECTION
Reverse connection will not damage the tester or vehicle load
SPECIFICATIONS
Language
English, Dutch, French
Application
12V lead-acid batteries; 12V scooter lithium batteries
Test Standard and Range
Lead-acid batteries: JIS(26A17-245H52)
CCA/BCI/CA/MCA/EN/SAE(100-2000)
DIN/IEC(100-1400)
GB(30-220Ah);
LiFePO4 batteries: JIS(26A17-150F51)
CCA/BCI/CA/MCA/EN/SAE(20-1000)
DIN/IEC(20-700)
GB(20-120Ah)
Input Voltage
8V~30V
Operating Temperature
-10℃~60℃ (14℉~140℉)
Storage Temperature
-20℃~70℃ (-4℉~158℉)
Display
2-line, 8-character backlit LCD
