leagend

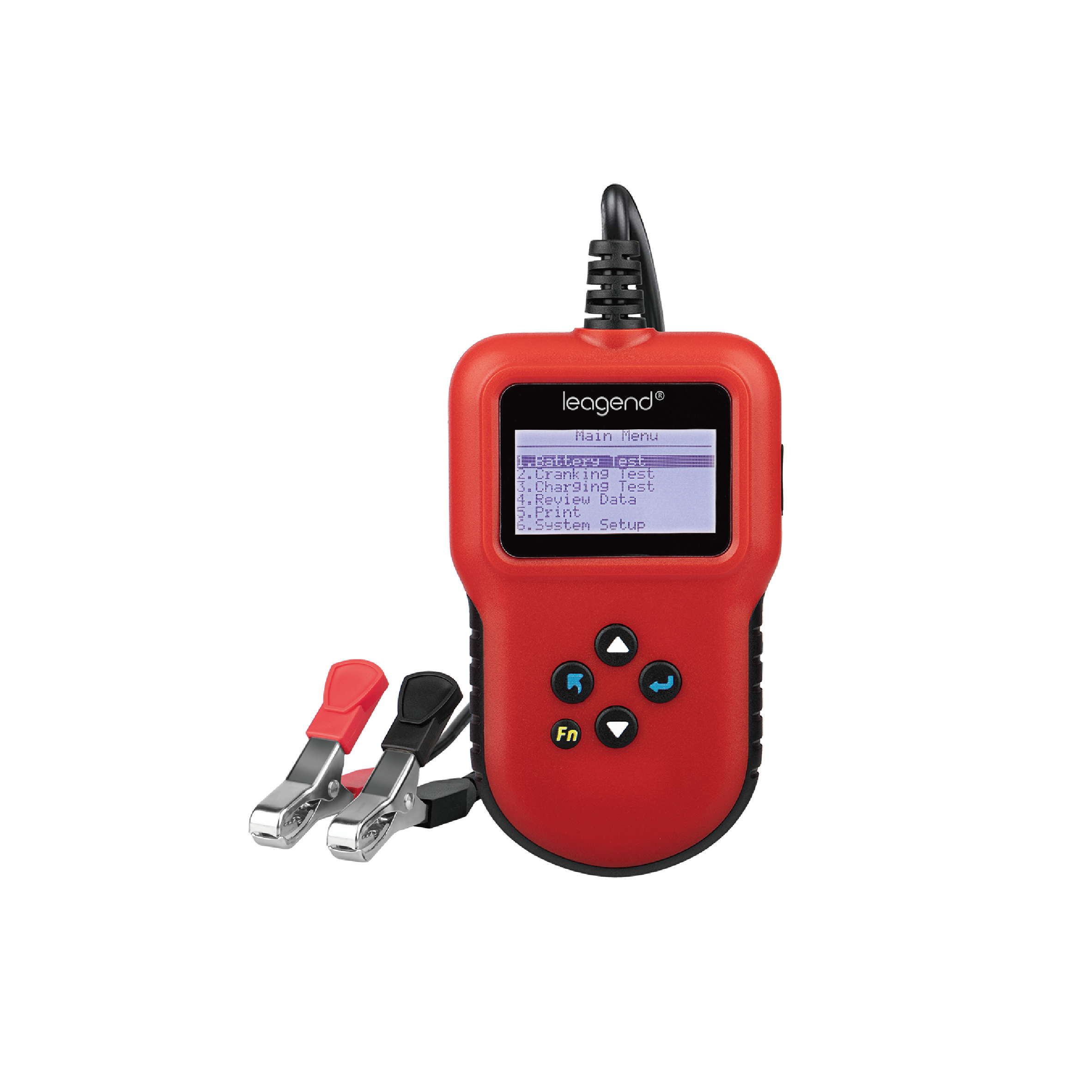

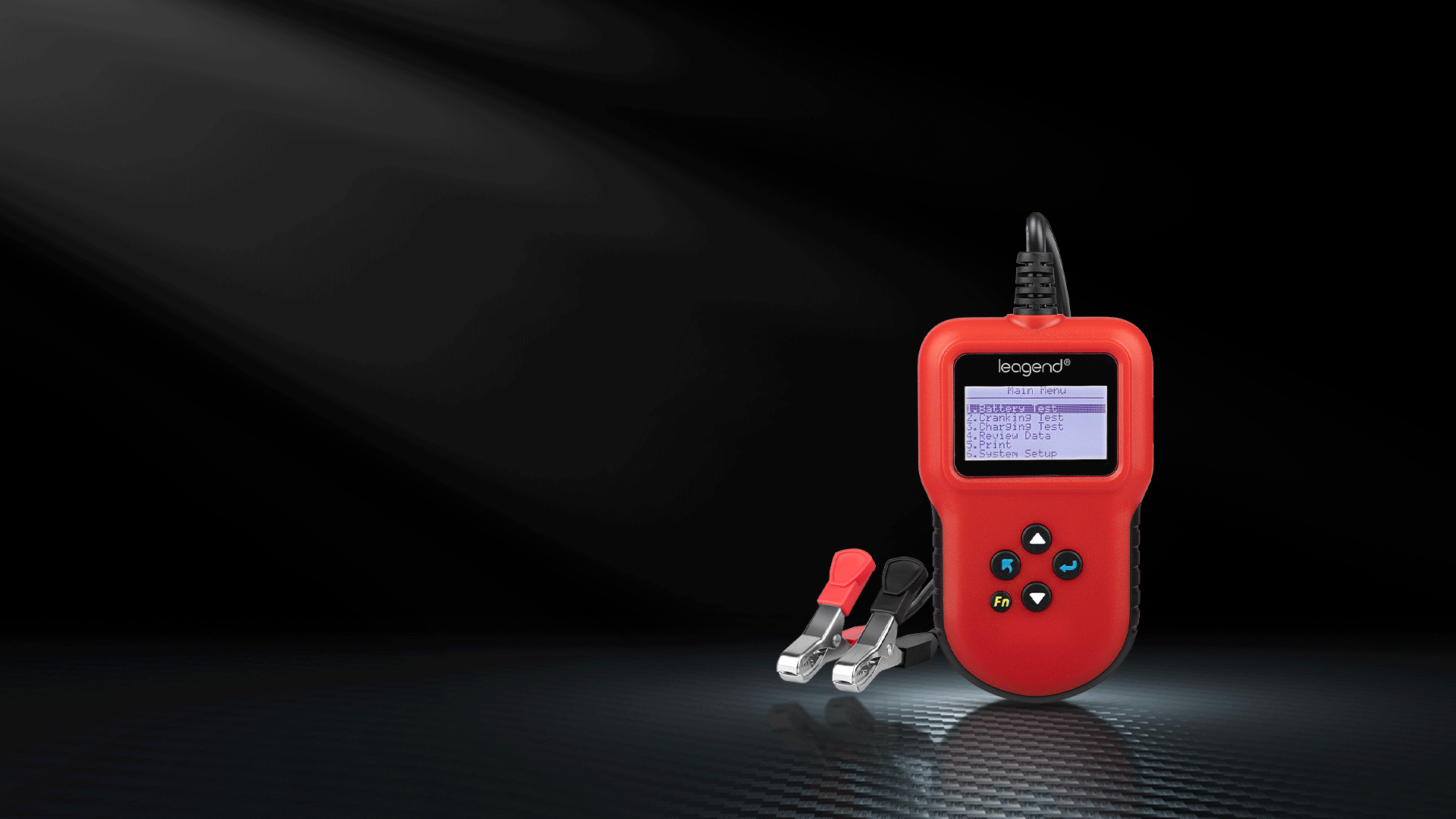

BA106
12V Lead-Acid & LiFePO4 Battery Tester
leagend BA106 is an advanced diagnostic tool designed for both 12V lead-acid and LiFePO4 engine starting batteries. It offers detailed testing of key parameters such as CCA (cold cranking amps), internal resistance, voltage, state of charge (SoC), and state of health. The tester also evaluates the 12V starting and charging systems to ensure optimal vehicle performance.
VERSATILE
BATTERY TESTER
● Test 12V lead-acid battery and LiFePO4 engine starting battery;
● Test the CCA (cold cranking amps)/internal resistance/voltage/state of charge (SoC)/state of health (SoH);
● Test the 12V starting system and charging system;
UNIQUE CUSTOM FAST KEY
Unique custom fast key Fn, we can set one-button test or one-button voltmeter mode;
Automatical features
● Automatically save the last test result for review;
● Automatic temperature compensation;
PRINT THE TEST RESULTS
Print test results by connecting to a computer;
BUILT-IN PROTECTION SYSTEM
Built-in protection for short circuit and reverse connection;
SPECIFICATIONS
Language
English, French, German, Spanish, Italian, Dutch
Application
All 12V lead-acid battery and LiFePO4 engine starting batteries
Test Standard and Range
Lead-acid batteries: JIS(26A17-245H528)
CCA/BCI/CA/MCA/EN/SAE(100-2000)
DIN/IEC(100-1400)
GB(30-220Ah);
LiFePO4 batteries: JIS(26A17-150F51)
CCA/BCI/CA/MCA/EN/SAE(20-1000)
DIN/IEC(20-700)
GB(20-120Ah)
Input Voltage
8V~30V
Operating Temperature
-10℃~60℃ (14℉~140℉)
Storage Temperature
-20℃~70℃ (-4℉~158℉)
